Fireline Woodtec Stove

Fireline Woodtec Stove

Unashamedly accentuating the delightful wood fire at its heart, refined and elegant design combines with powerful SIA Ecodesign Ready performance to deliver Woodtec’s unique and compelling allure. Clean lines of the exquisitely profiled cast iron door and strong seam welded steel firebox blend flawlessly into a multitude of fireplace and interior scenes. Cutting-edge patented biomass combustion technology is ingeniously integrated into a captivating paradigm of warm ambience created by fire.

Easy to operate with a technically advanced single air control and powerful air wash, each of the three wood burning models can be personalised with optional stand, log store and black or oak handles. For total peace of mind all models are SIA Ecodesign Ready certified, DEFRA exempt for smoke control areas, HETAS approved, CE marked to harmonised standards and manufactured under ISO9001 and ISO14000 systems.

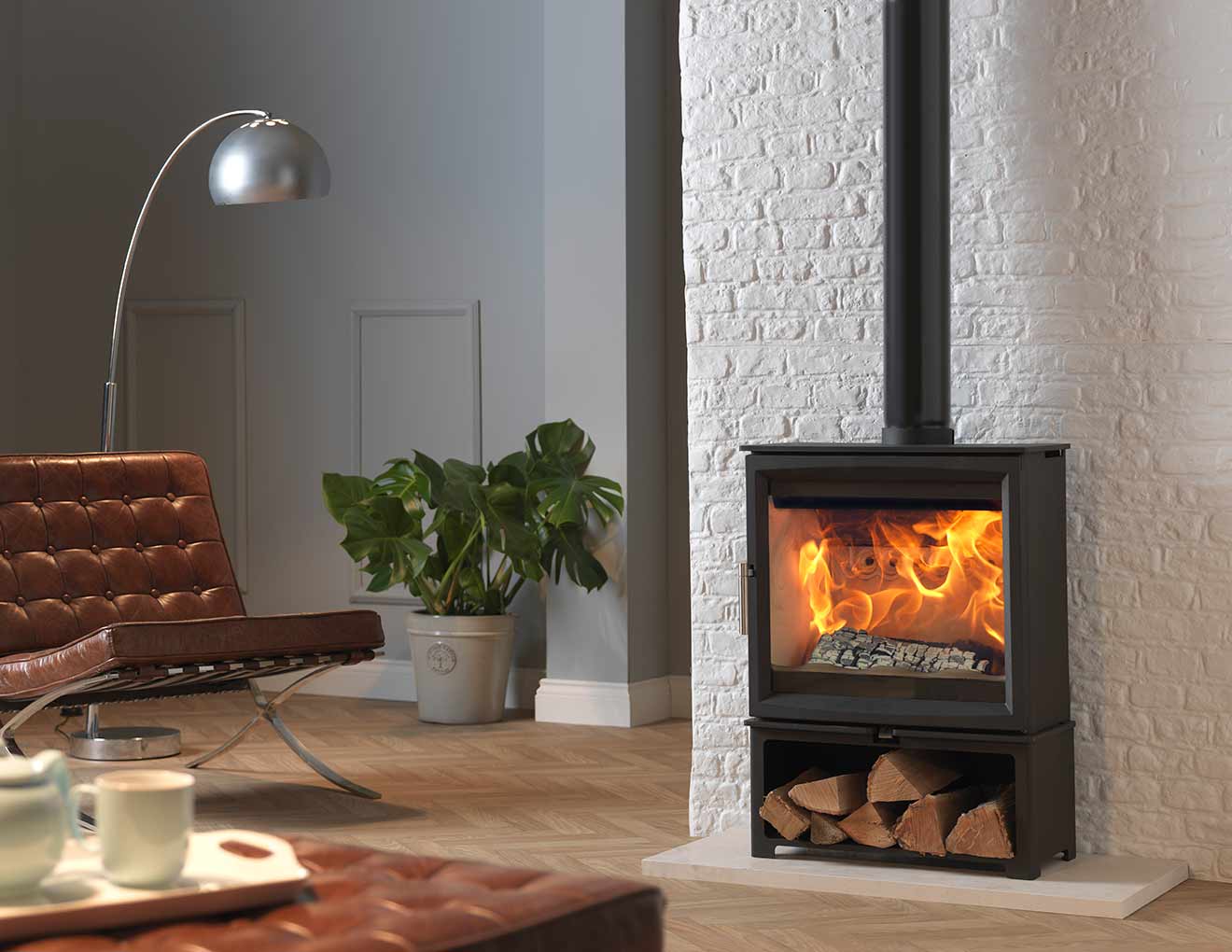

Models Available include the 5, 5W (Wide), and 5XW (Extra Wide).

This product is currently out of stock and unavailable.

SKU: FIRELWOODST Category:

Description

Features

  • Super-sized windows and clean design lines
  • Extra high quality  cast ceramic firebox liners
  • Min 70mm rear clearance to combustibles*
  • Min 50mm clearance to non-combustibles*
  • 80% plus efficiencies

Features

  • Top and rear flue outlet connections
  • Single stainless steel air control lever
  • High quality cast iron doors
  • External air kit available
  • Choice of black or oak handles
  • Optional stand or logstore
  • 3 styles: standard, wide and extra wide
  • Slimline fireboxes as standard ˂ 12” deep

Downloads:

Product Manual

Energy Label

Model 5 Specifications:

Overall size mm
(WxHxD)
414mm x 548mm x 290mm
Weight (kg) 66
Output to room 5kW/17,060BTU
Fuel Type Wood
Efficiency 81.1%
Flue Diameter 5” / 127mm

Model 5 Wide Specifications:

Overall size mm
(WxHxD)
514mm x 548mm x 293mm
Weight (kg) 78
Output to room 5kW/17,060BTU
Fuel Type Wood
Efficiency 80.2%
Flue Diameter 5” / 127mm

Model 5 Extra Wide Specifications:

Overall size mm
(WxHxD)
564mm x 548mm x 295mm
Weight (kg) 85
Output to room 5kW/17,060BTU
Fuel Type Wood
Efficiency 81.2%
Flue Diameter 5” / 127mm

Additional information

Model

5, 5W (Wide), 5XW (Extra Wide)
