Our Heat Design Insert Stoves can be simply installed into a standard solid fuel fireplace opening, and can greatly increase the efficiency of your fire. Open fires can be as low as 20% efficient, with the majority of heat escaping up the chimney. Our insert stoves can deliver efficiency ratings of up to 80%, meaning that you burn less fuel and deliver fewer toxins into the environment.

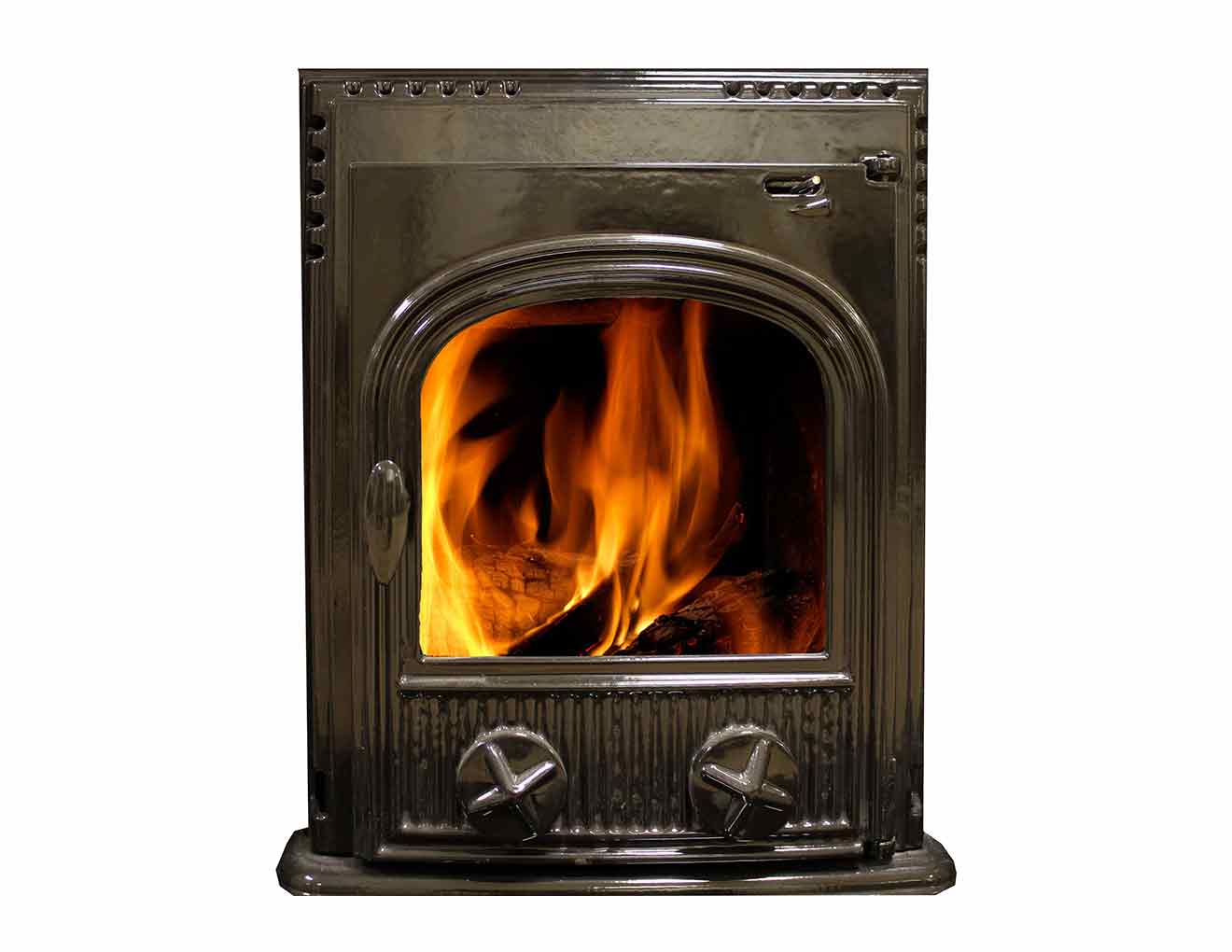

Models Available include the TR 4kW, TR 5kW & TR 7kW Insert Stoves.
| Overall size mm (WxHxD) |
492mm x 598mm x 177mm |
| Weight (kg) | 80 |
| Output to room | 4kW/13,648BTU |
| Fuel Type | Wood or Solid Fuel |
| Efficiency | 83% |
| Flue Diameter | 6” / 153mm |
| Overall size mm (WxHxD) |
492mm x 598mm x 177mm |
| Weight (kg) | 87 |
| Output to room | 5kW/17,060BTU |
| Fuel Type | Wood or Solid Fuel |
| Efficiency | 77% |
| Flue Diameter | 6” / 153mm |
| Overall size mm (WxHxD) |
492mm x 598mm x 250mm |
| Weight (kg) | 105 |
| Output to room | 7kW/23,884BTU |
| Fuel Type | Wood or Solid Fuel |
| Efficiency | 77.1% |
| Flue Diameter | 6” / 153mm |
| Model | TR 4kW, TR 5kW, TR7 kW |
|---|
